An aging report groups open balances by how long they are past due: not yet due, 0-30 days, 31-60 days, 61-90 days and over 90 days. Finance teams use it every week to see which amounts need a reminder and which are turning into bad debt.
This guide builds an aging page in Oracle APEX with one SQL macro that puts every open invoice into its bucket. A Classic Report shows the buckets per client with column totals, a stacked bar chart shows the same amounts, and an As Of Date item recalculates everything for any past date.
The example uses invoices and payments of a few clients. The same steps work for any table with a due date and an open amount, such as rentals, loans or support tickets.
Step 1: Create the Tables
Three tables hold the data:
- AR_CLIENTS has one row per client with a unique name.
- AR_INVOICES has one row per invoice: a unique invoice number, the client, the invoice date, the due date and the amount.
- AR_PAYMENTS has one row per payment with its date and amount. An invoice can have several payments.
The sample data uses dates relative to today, so the buckets look the same whenever you run it. Create the tables with 6 clients, 18 invoices and 4 payments:
Example:
set pages 100 lines 200 feedback on
alter session set nls_date_format = 'DD-MON-YYYY';
create table ar_clients (
client_id number generated by default on null as identity,
client_name varchar2(100) not null,
constraint ar_clients_pk primary key (client_id),
constraint ar_clients_name_uk unique (client_name)
);
create table ar_invoices (
invoice_id number generated by default on null as identity,
invoice_no varchar2(20) not null,
client_id number not null,
invoice_date date not null,
due_date date not null,
amount number(12,2) not null,
constraint ar_invoices_pk primary key (invoice_id),
constraint ar_invoices_no_uk unique (invoice_no),
constraint ar_invoices_client_fk foreign key (client_id) references ar_clients (client_id),
constraint ar_invoices_amount_ck check (amount > 0),
constraint ar_invoices_due_ck check (due_date >= invoice_date)
);
create index ar_invoices_client_ix on ar_invoices (client_id);
create table ar_payments (
payment_id number generated by default on null as identity,
invoice_id number not null,
payment_date date not null,
amount number(12,2) not null,
constraint ar_payments_pk primary key (payment_id),
constraint ar_payments_invoice_fk foreign key (invoice_id) references ar_invoices (invoice_id),
constraint ar_payments_amount_ck check (amount > 0)
);
create index ar_payments_invoice_ix on ar_payments (invoice_id);
insert into ar_clients (client_name)
select client_name
from (values ('Northwind Traders'), ('Bluebird Studio'), ('Cedar Hardware'),
('Delta Logistics'), ('Evergreen Foods'), ('Fjord Marine')) v (client_name);
insert into ar_invoices (invoice_no, client_id, invoice_date, due_date, amount)
select v.invoice_no, c.client_id, trunc(sysdate) - v.days_ago, trunc(sysdate) - v.days_ago + v.terms, v.amount
from (values ('INV-1001', 'Northwind Traders', 15, 30, 4200),
('INV-1002', 'Northwind Traders', 50, 30, 3100),
('INV-1003', 'Northwind Traders', 110, 30, 2500),
('INV-1004', 'Bluebird Studio', 10, 30, 1800),
('INV-1005', 'Bluebird Studio', 75, 30, 2600),
('INV-1006', 'Bluebird Studio', 140, 30, 900),
('INV-1007', 'Cedar Hardware', 35, 30, 5400),
('INV-1008', 'Cedar Hardware', 62, 30, 3300),
('INV-1009', 'Cedar Hardware', 95, 30, 1500),
('INV-1010', 'Delta Logistics', 20, 15, 2750),
('INV-1011', 'Delta Logistics', 125, 30, 6100),
('INV-1012', 'Delta Logistics', 45, 30, 1200),
('INV-1013', 'Evergreen Foods', 5, 30, 3900),
('INV-1014', 'Evergreen Foods', 80, 30, 2200),
('INV-1015', 'Evergreen Foods', 160, 30, 4800),
('INV-1016', 'Fjord Marine', 40, 30, 3500),
('INV-1017', 'Fjord Marine', 100, 30, 2900),
('INV-1018', 'Fjord Marine', 2, 30, 1600)) v (invoice_no, client_name, days_ago, terms, amount)
join ar_clients c on c.client_name = v.client_name;
insert into ar_payments (invoice_id, payment_date, amount)
select i.invoice_id, trunc(sysdate) - v.days_ago, v.amount
from (values ('INV-1012', 10, 1200),
('INV-1014', 30, 1000),
('INV-1015', 60, 2000),
('INV-1016', 3, 3500)) v (invoice_no, days_ago, amount)
join ar_invoices i on i.invoice_no = v.invoice_no;
commit;
select i.invoice_no, c.client_name, i.invoice_date, i.due_date, i.amount,
(select nvl(sum(p.amount), 0) from ar_payments p where p.invoice_id = i.invoice_id) as paid
from ar_invoices i
join ar_clients c on c.client_id = i.client_id
order by i.invoice_no;Output:
Session altered. Table AR_CLIENTS created. Table AR_INVOICES created. Index AR_INVOICES_CLIENT_IX created. Table AR_PAYMENTS created. Index AR_PAYMENTS_INVOICE_IX created. 6 rows inserted. 18 rows inserted. 4 rows inserted. Commit complete. INVOICE_NO CLIENT_NAME INVOICE_DATE DUE_DATE AMOUNT PAID _____________ ____________________ _______________ ______________ _________ _______ INV-1001 Northwind Traders 05-OCT-2026 04-NOV-2026 4200 0 INV-1002 Northwind Traders 31-AUG-2026 30-SEP-2026 3100 0 INV-1003 Northwind Traders 02-JUL-2026 01-AUG-2026 2500 0 INV-1004 Bluebird Studio 10-OCT-2026 09-NOV-2026 1800 0 INV-1005 Bluebird Studio 06-AUG-2026 05-SEP-2026 2600 0 INV-1006 Bluebird Studio 02-JUN-2026 02-JUL-2026 900 0 INV-1007 Cedar Hardware 15-SEP-2026 15-OCT-2026 5400 0 INV-1008 Cedar Hardware 19-AUG-2026 18-SEP-2026 3300 0 INV-1009 Cedar Hardware 17-JUL-2026 16-AUG-2026 1500 0 INV-1010 Delta Logistics 30-SEP-2026 15-OCT-2026 2750 0 INV-1011 Delta Logistics 17-JUN-2026 17-JUL-2026 6100 0 INV-1012 Delta Logistics 05-SEP-2026 05-OCT-2026 1200 1200 INV-1013 Evergreen Foods 15-OCT-2026 14-NOV-2026 3900 0 INV-1014 Evergreen Foods 01-AUG-2026 31-AUG-2026 2200 1000 INV-1015 Evergreen Foods 13-MAY-2026 12-JUN-2026 4800 2000 INV-1016 Fjord Marine 10-SEP-2026 10-OCT-2026 3500 3500 INV-1017 Fjord Marine 12-JUL-2026 11-AUG-2026 2900 0 INV-1018 Fjord Marine 18-OCT-2026 17-NOV-2026 1600 0 18 rows selected.
- AR_INVOICES_CLIENT_FK and AR_PAYMENTS_INVOICE_FK link the rows. Both foreign keys have an index, which the aging query uses for its joins.
- AR_INVOICES_DUE_CK makes sure that no invoice is due before its invoice date. AR_INVOICES_AMOUNT_CK and AR_PAYMENTS_AMOUNT_CK allow only positive amounts.
- The open balance is not stored. It is calculated from the payments, so it can be calculated for any date.
In this example, INV-1012 is fully paid, INV-1014 and INV-1015 are partly paid, and INV-1016 was paid three days ago.
Step 2: Create the Aging Function
The bucket rules are needed in three places on the page: the summary report, the chart and the invoice list. Writing them once keeps them the same everywhere.
A table SQL macro does this well. It is a function that returns the text of a query. Oracle puts that text into the calling SQL statement, so the macro is used like a view that takes a parameter, here the as-of date:
Example:
create or replace function ar_aging_items (p_as_of in date)
return varchar2 sql_macro(table)
is
begin
return q'{
select i.invoice_id,
i.invoice_no,
c.client_name,
i.invoice_date,
i.due_date,
i.amount,
i.amount - nvl(p.paid_amount, 0) as balance,
p_as_of - i.due_date as days_overdue,
case
when p_as_of < i.due_date then 'Not Due'
when p_as_of - i.due_date <= 30 then '0-30'
when p_as_of - i.due_date <= 60 then '31-60'
when p_as_of - i.due_date <= 90 then '61-90'
else 'Over 90'
end as bucket,
case
when p_as_of < i.due_date then 1
when p_as_of - i.due_date <= 30 then 2
when p_as_of - i.due_date <= 60 then 3
when p_as_of - i.due_date <= 90 then 4
else 5
end as bucket_seq
from ar_invoices i
join ar_clients c on c.client_id = i.client_id
left join (select invoice_id, sum(amount) as paid_amount
from ar_payments
where payment_date <= p_as_of
group by invoice_id) p on p.invoice_id = i.invoice_id
where i.invoice_date <= p_as_of
and i.amount - nvl(p.paid_amount, 0) > 0
}';
end;
/Output:
Function AR_AGING_ITEMS compiled
How the macro works:
- The inline view adds up only the payments made on or before the as-of date. BALANCE is the amount minus those payments.
- DAYS_OVERDUE is the as-of date minus the due date. A negative number means the invoice is not due yet.
- The CASE expression gives the bucket name, and a second CASE gives BUCKET_SEQ, a number that sorts the buckets in their natural order.
- Invoices dated after the as-of date and invoices without an open balance are left out.
An invoice due today has 0 days overdue and lands in 0-30. If your rules count it as not due, change the first condition from < to <=.
Query the macro for today to see each open invoice and its bucket:
Example:
set pages 100 lines 200 feedback on alter session set nls_date_format = 'DD-MON-YYYY'; select invoice_no, client_name, due_date, balance, days_overdue, bucket from ar_aging_items(trunc(sysdate)) order by bucket_seq, days_overdue, invoice_no;
Output:
Session altered. INVOICE_NO CLIENT_NAME DUE_DATE BALANCE DAYS_OVERDUE BUCKET _____________ ____________________ ______________ __________ _______________ __________ INV-1018 Fjord Marine 17-NOV-2026 1600 -28 Not Due INV-1013 Evergreen Foods 14-NOV-2026 3900 -25 Not Due INV-1004 Bluebird Studio 09-NOV-2026 1800 -20 Not Due INV-1001 Northwind Traders 04-NOV-2026 4200 -15 Not Due INV-1007 Cedar Hardware 15-OCT-2026 5400 5 0-30 INV-1010 Delta Logistics 15-OCT-2026 2750 5 0-30 INV-1002 Northwind Traders 30-SEP-2026 3100 20 0-30 INV-1008 Cedar Hardware 18-SEP-2026 3300 32 31-60 INV-1005 Bluebird Studio 05-SEP-2026 2600 45 31-60 INV-1014 Evergreen Foods 31-AUG-2026 1200 50 31-60 INV-1009 Cedar Hardware 16-AUG-2026 1500 65 61-90 INV-1017 Fjord Marine 11-AUG-2026 2900 70 61-90 INV-1003 Northwind Traders 01-AUG-2026 2500 80 61-90 INV-1011 Delta Logistics 17-JUL-2026 6100 95 Over 90 INV-1006 Bluebird Studio 02-JUL-2026 900 110 Over 90 INV-1015 Evergreen Foods 12-JUN-2026 2800 130 Over 90 16 rows selected.
Sixteen invoices are open. INV-1012 and INV-1016 are missing because they are paid. The totals per bucket are the numbers the APEX page must show:
Example:
set pages 100 lines 200 feedback on select bucket, count(*) as invoices, sum(balance) as balance from ar_aging_items(trunc(sysdate)) group by bucket, bucket_seq order by bucket_seq;
Output:
BUCKET INVOICES BALANCE __________ ___________ __________ Not Due 4 11500 0-30 3 11250 31-60 3 7100 61-90 3 6900 Over 90 3 9800 5 rows selected.
Step 3: Create the Classic Report Page
The summary report has one row per client and one column per bucket. Each column adds up only the balances of its bucket:
Example:
select client_name,
sum(case bucket when 'Not Due' then balance end) as not_due,
sum(case bucket when '0-30' then balance end) as days_0_30,
sum(case bucket when '31-60' then balance end) as days_31_60,
sum(case bucket when '61-90' then balance end) as days_61_90,
sum(case bucket when 'Over 90' then balance end) as days_over_90,
sum(balance) as total_balance
from ar_aging_items(nvl(to_date(:P840_AS_OF default null on conversion error, 'YYYY-MM-DD'), trunc(sysdate)))
group by client_name
order by client_nameThe page item P840_AS_OF is created in Step 4. The query reads it with the format YYYY-MM-DD. DEFAULT NULL ON CONVERSION ERROR turns a value that is not a valid date into NULL, and NVL then uses today. A bad value can never break the query with an ORA- error.
In Page Designer, click Create (the plus icon) and choose Page. Select the Classic Report tile:

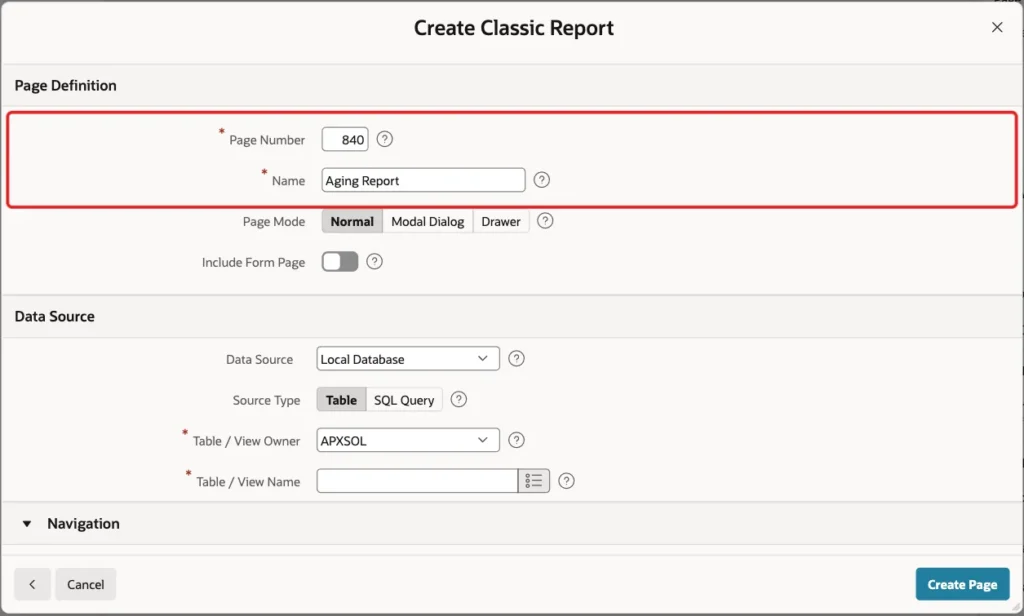

On the Create Classic Report screen, enter Page Number 840 and Name Aging Report. Leave Page Mode Normal and Include Form Page off:

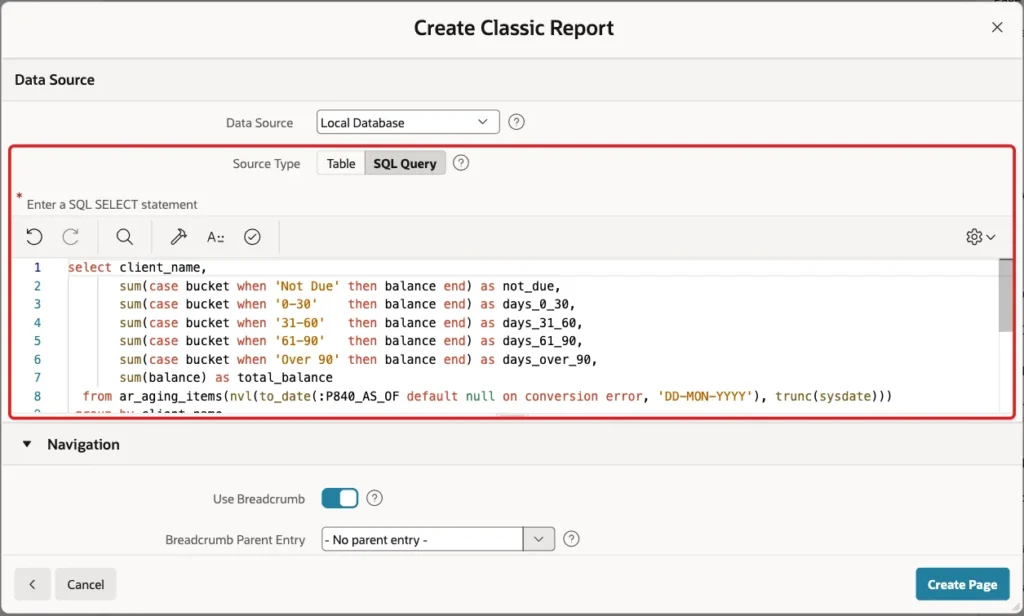

Under Data Source, keep Local Database, set Source Type to SQL Query and paste the query above into the editor:

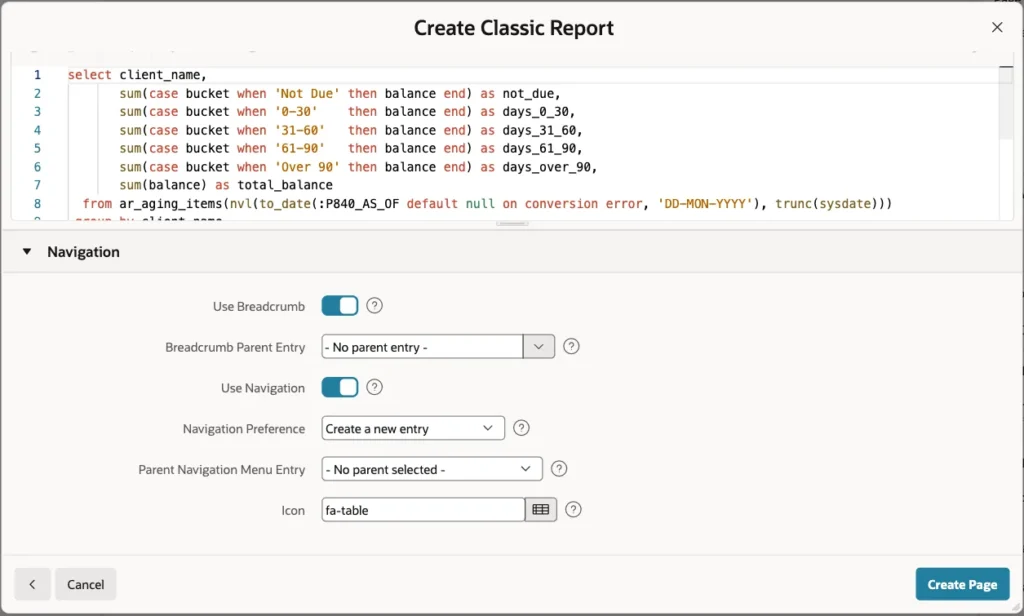

Under Navigation, keep the defaults: a breadcrumb and a new navigation menu entry with the icon fa-table. Click Create Page:
The wizard creates page 840 with the region Aging Report. In this test it turned Sortable off for every column. Keep it off: the clients are sorted by the query, and the total row must stay at the bottom.
Step 4: Add the As Of Date Item

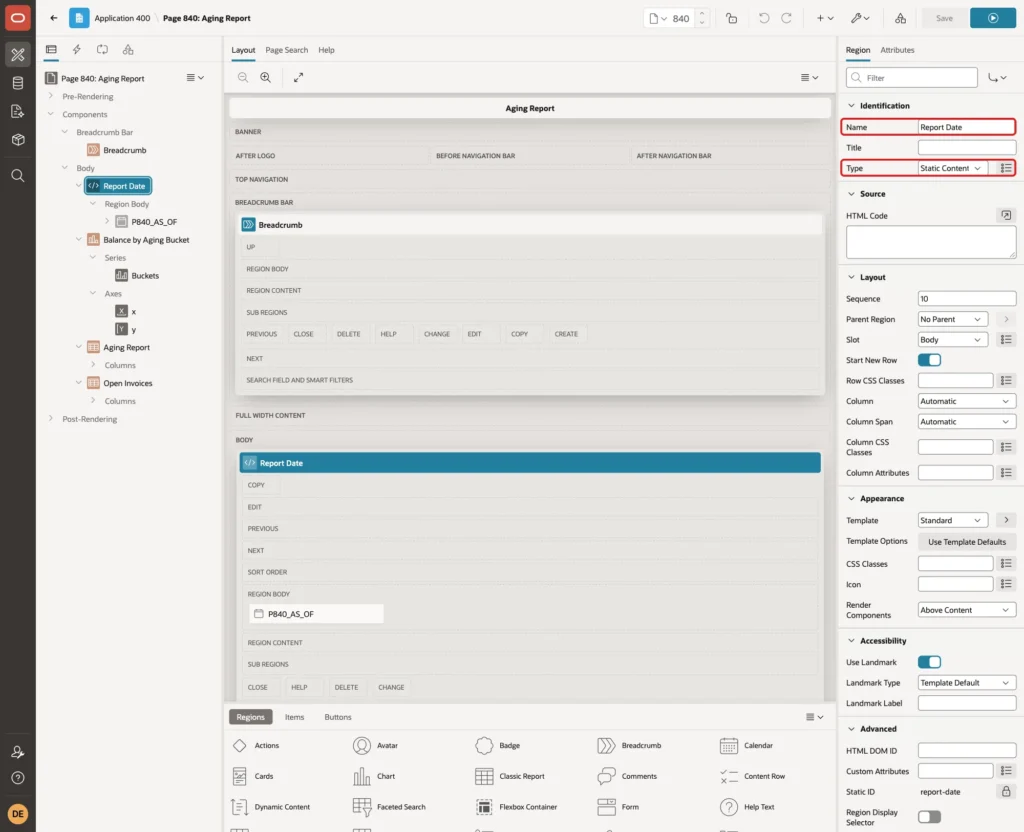

Right-click Body in the Rendering tree and choose Create Region. Set Name to Report Date and keep Type Static Content. Drag it above the Aging Report region, or give it Sequence 10 and the report Sequence 30:

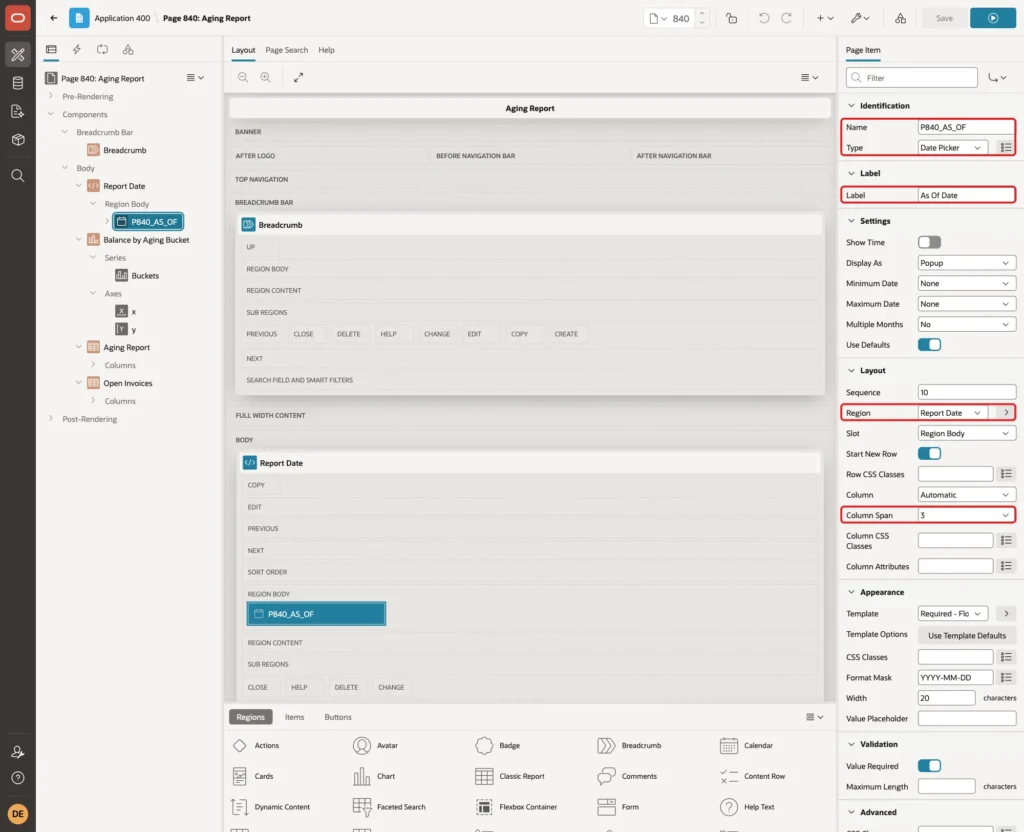

Right-click the Report Date region, choose Create Page Item and set:
- Name: P840_AS_OF, Type: Date Picker
- Label: As Of Date
- Layout: Region Report Date, Column Span 3

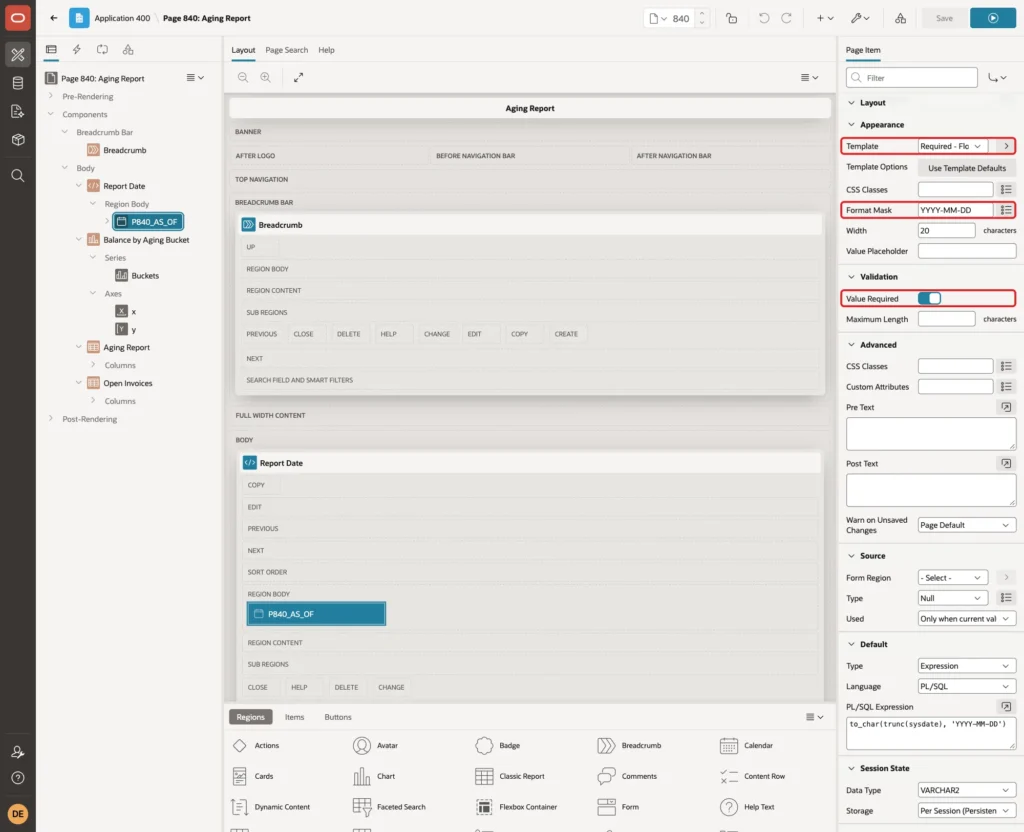

Under Appearance, set Template to Required - Floating and Format Mask to YYYY-MM-DD. Under Validation, turn on Value Required:
The format mask is the same one the queries use in TO_DATE. YYYY-MM-DD has no month names, so it also works when the application runs in another language.

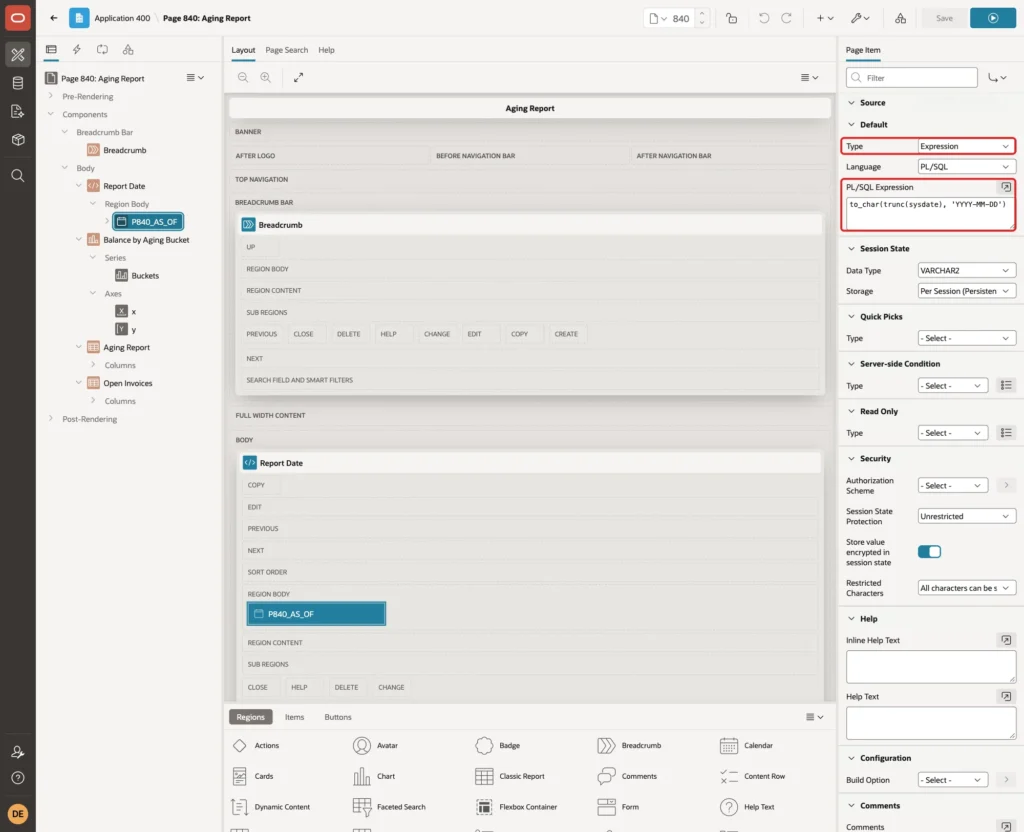

Under Default, set Type to Expression, Language to PL/SQL and PL/SQL Expression to:
Example:
to_char(trunc(sysdate), 'YYYY-MM-DD')
Step 5: Format the Report Columns and Add Totals
Select the Aging Report region. Under Source, set Page Items to Submit to P840_AS_OF. Each refresh then sends the current date to the server. Under Advanced, set HTML DOM ID to aging-report:
Under Messages, set When No Data Found to No open invoices on this date.
Expand Columns under the region and set these headings:
- CLIENT_NAME: Client
- NOT_DUE: Not Due
- DAYS_0_30: 0-30 Days
- DAYS_31_60: 31-60 Days
- DAYS_61_90: 61-90 Days
- DAYS_OVER_90: Over 90 Days
- TOTAL_BALANCE: Total
For each of the six number columns, set Appearance > Format Mask to FM999G999G990D00. The screenshot shows NOT_DUE:

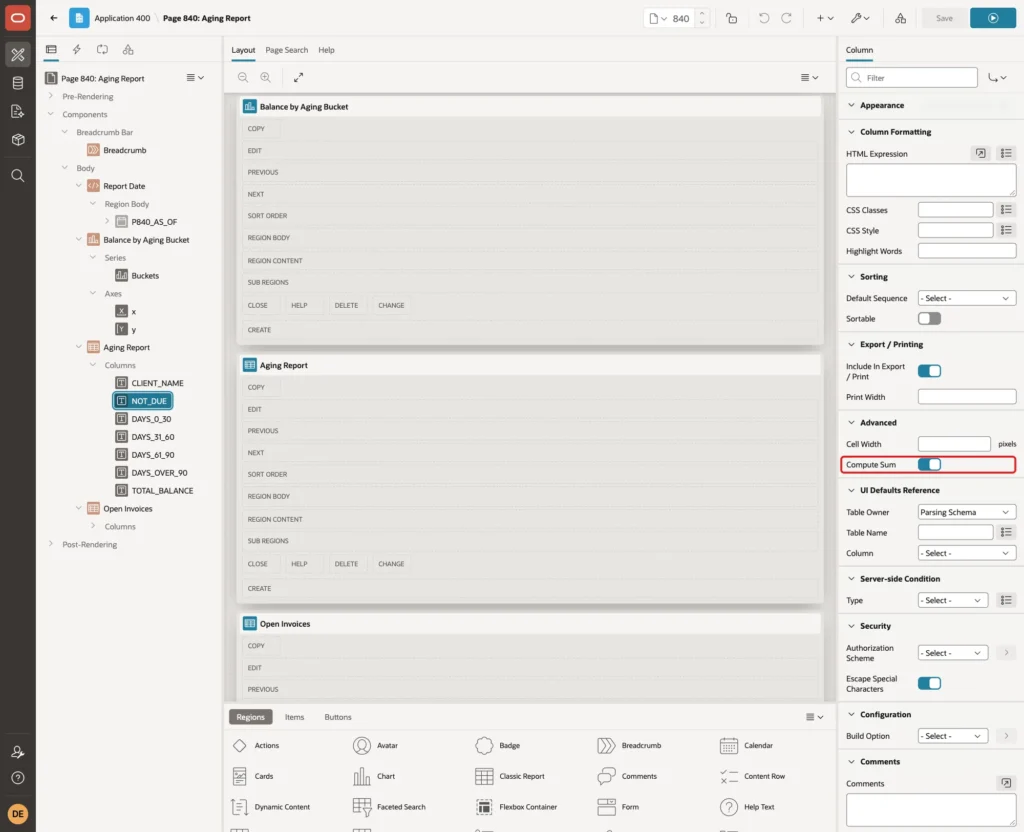

Then turn on Advanced > Compute Sum for the same six columns:
Compute Sum is a declarative feature of the Classic Report. APEX adds a Report Total row at the bottom, so the query needs no ROLLUP and no union for the totals.
Step 6: Add the Stacked Bar Chart

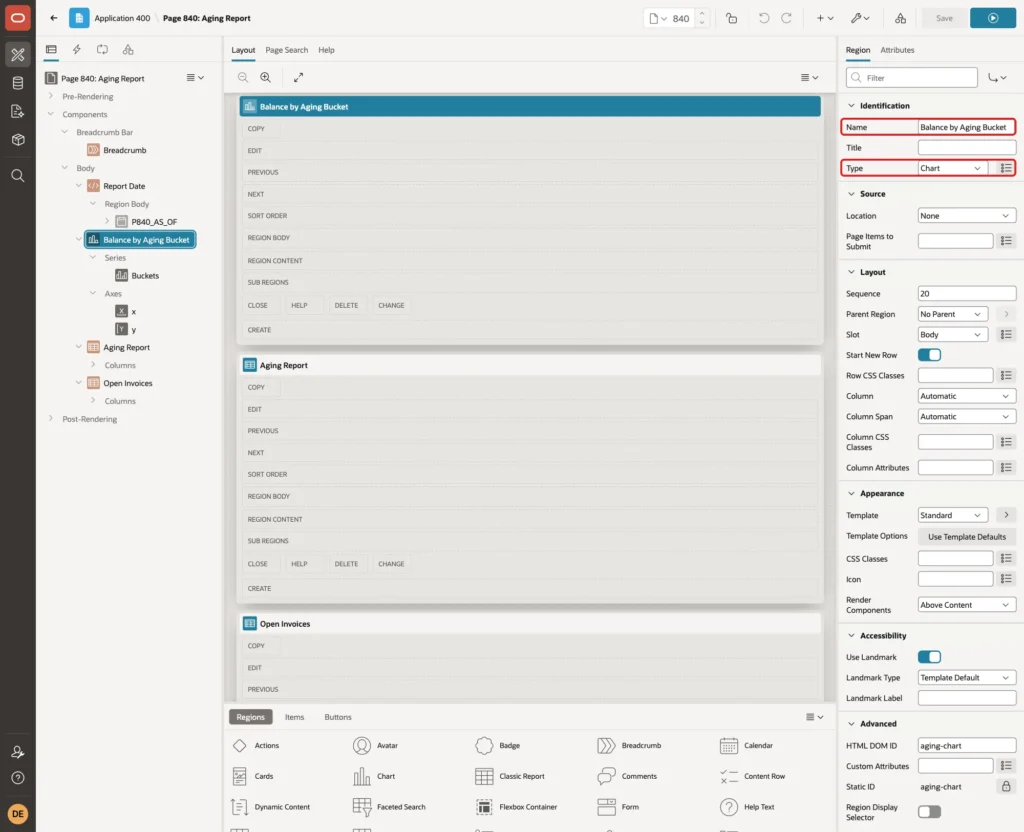

Right-click Body and choose Create Region. Set Name to Balance by Aging Bucket and Type to Chart. Give it Sequence 20, so it sits between the date field and the report:

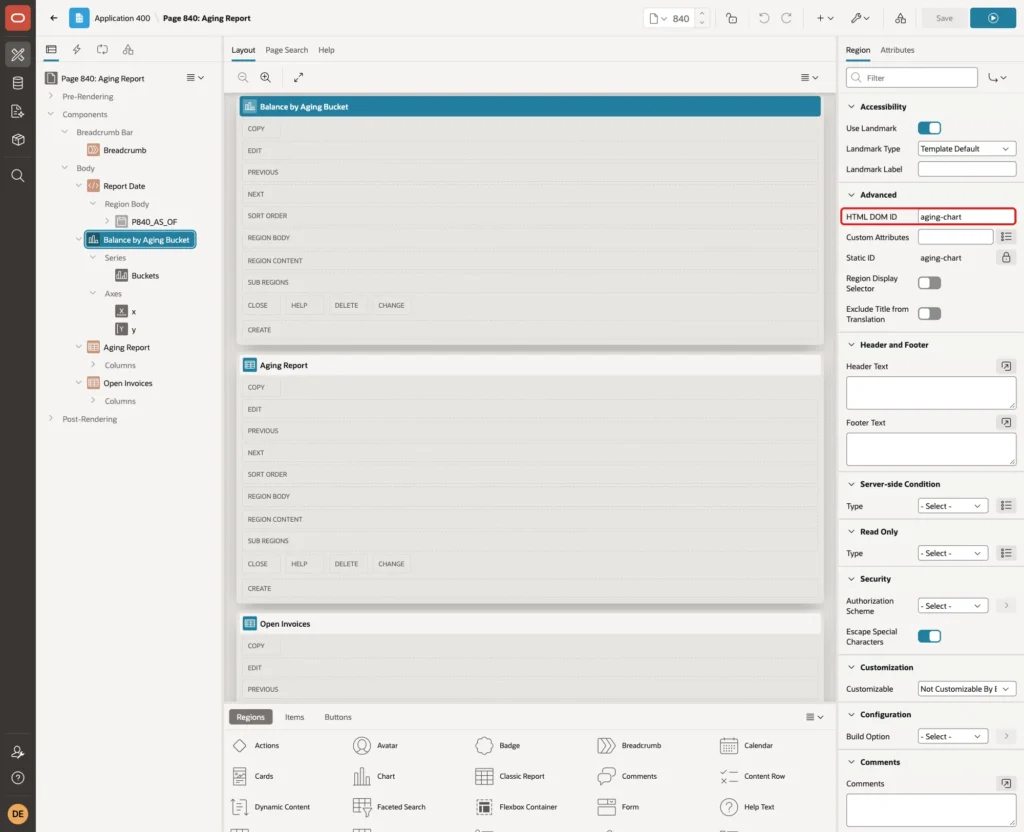

Under Advanced, set HTML DOM ID to aging-chart:

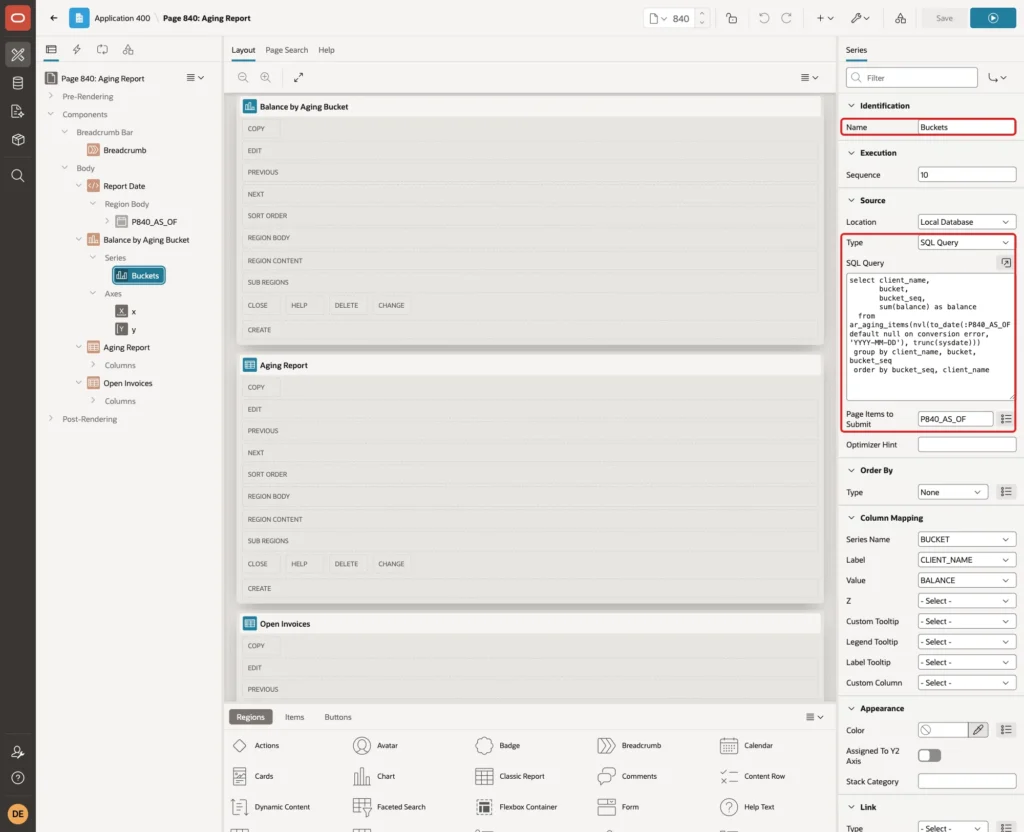

Expand the region, select its series under Series and rename it Buckets. Set Source > Type to SQL Query, enter the query below and set Page Items to Submit to P840_AS_OF:
Example:
select client_name,
bucket,
bucket_seq,
sum(balance) as balance
from ar_aging_items(nvl(to_date(:P840_AS_OF default null on conversion error, 'YYYY-MM-DD'), trunc(sysdate)))
group by client_name, bucket, bucket_seq
order by bucket_seq, client_name

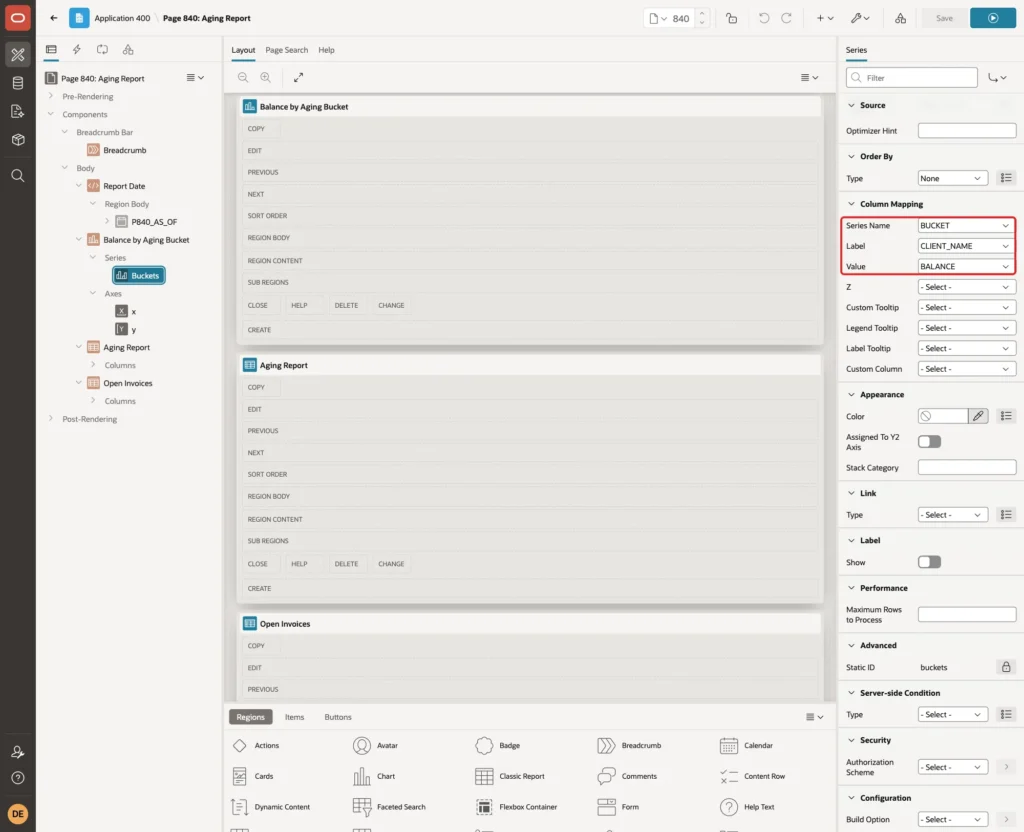

The query returns one row per client and bucket. Under Column Mapping, set Series Name to BUCKET, Label to CLIENT_NAME and Value to BALANCE:
Series Name is the key setting. APEX creates one chart series for each distinct BUCKET value, so a single SQL query draws all five buckets. Because the query sorts by BUCKET_SEQ first, the series appear in bucket order, from Not Due to Over 90.

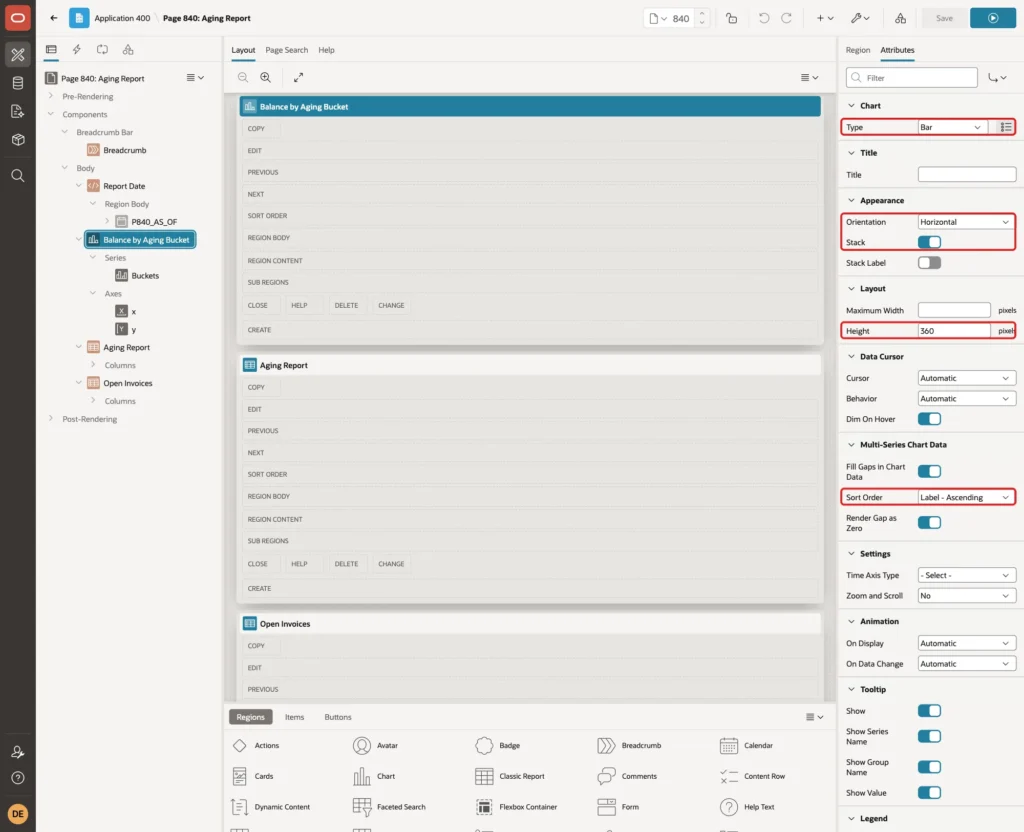

Select the chart region again and open the Attributes tab. Keep Chart > Type Bar, set Appearance > Orientation to Horizontal, turn on Stack and set Layout > Height to 360:
Keep Multi-Series Chart Data > Sort Order at its default, Label - Ascending. It sorts the clients by name on the chart.

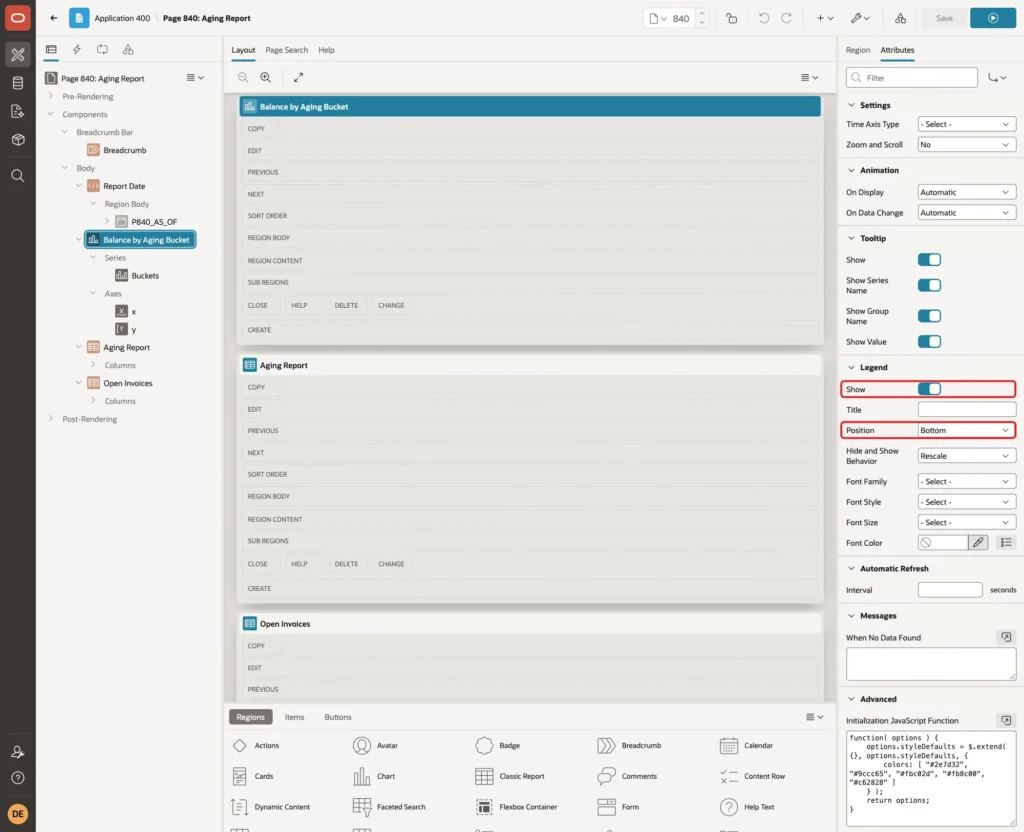

Under Legend, turn on Show and set Position to Bottom:

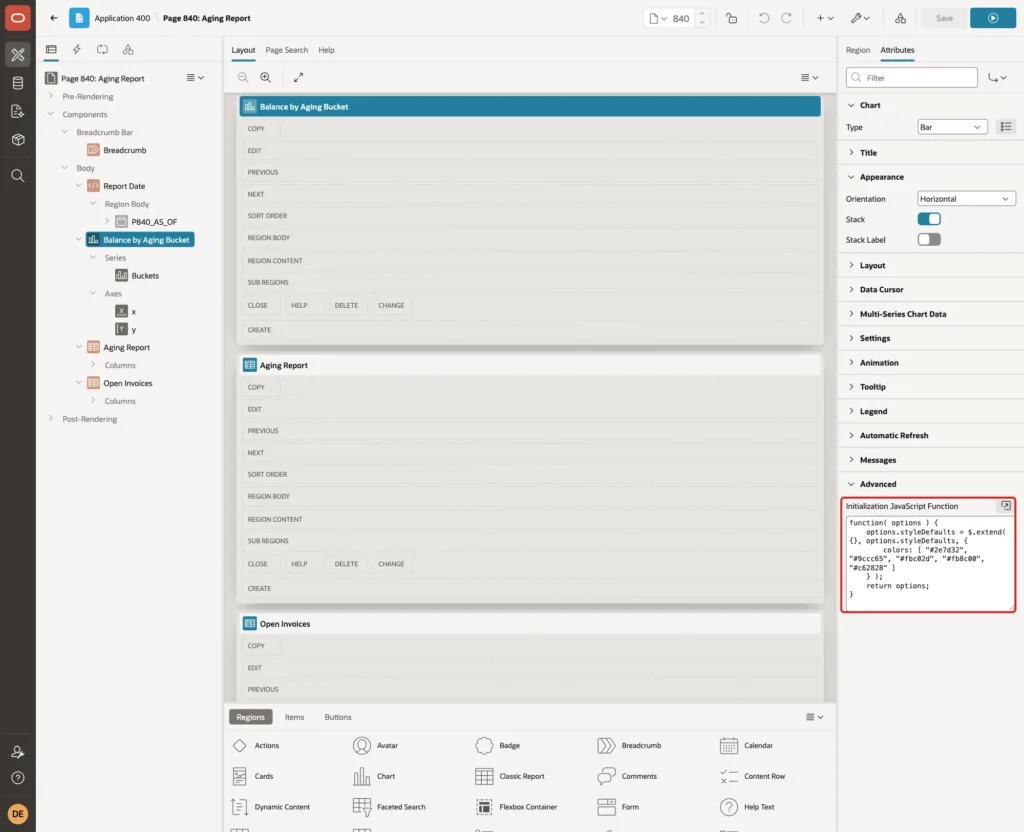

The default chart colors do not say anything about risk. Under Advanced, enter this Initialization JavaScript Function. It gives the five series colors from green to red, in the same order as the buckets:
Example:
function( options ) {
options.styleDefaults = $.extend( {}, options.styleDefaults, {
colors: [ "#2e7d32", "#9ccc65", "#fbc02d", "#fb8c00", "#c62828" ]
} );
return options;
}

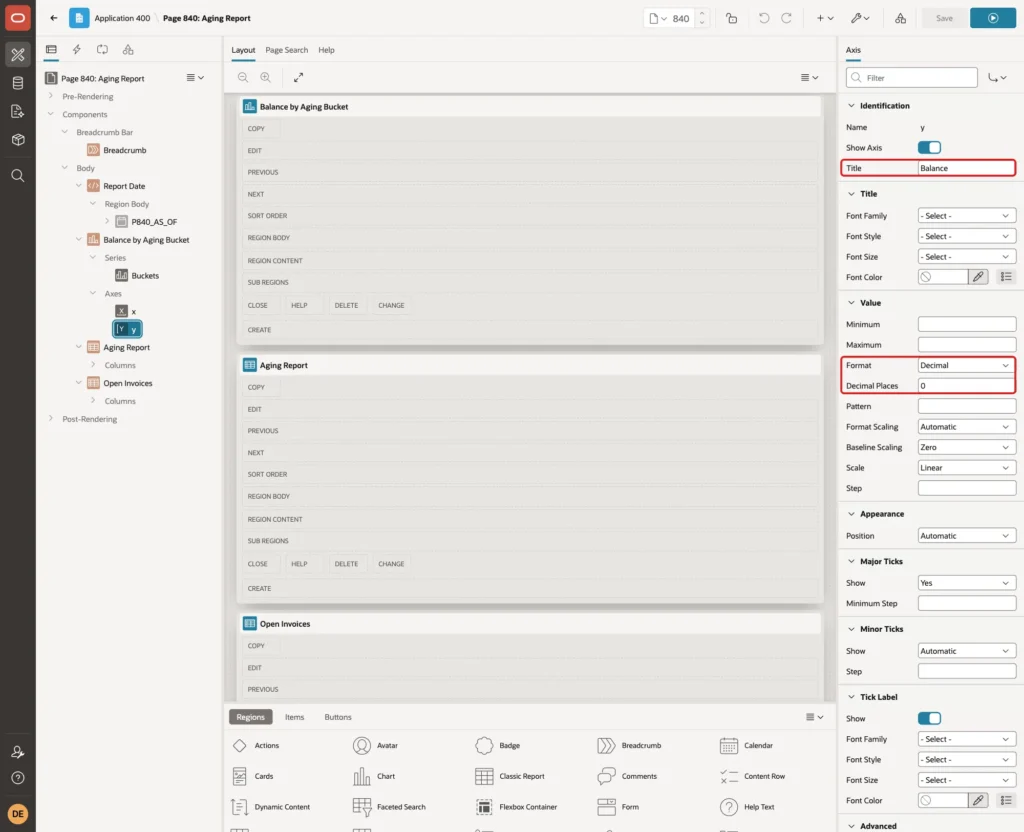

Expand Axes and select y. Set Title to Balance, Value > Format to Decimal and Decimal Places to 0. With a horizontal chart, the y axis is the value axis at the bottom:
Step 7: Add the Open Invoices Report

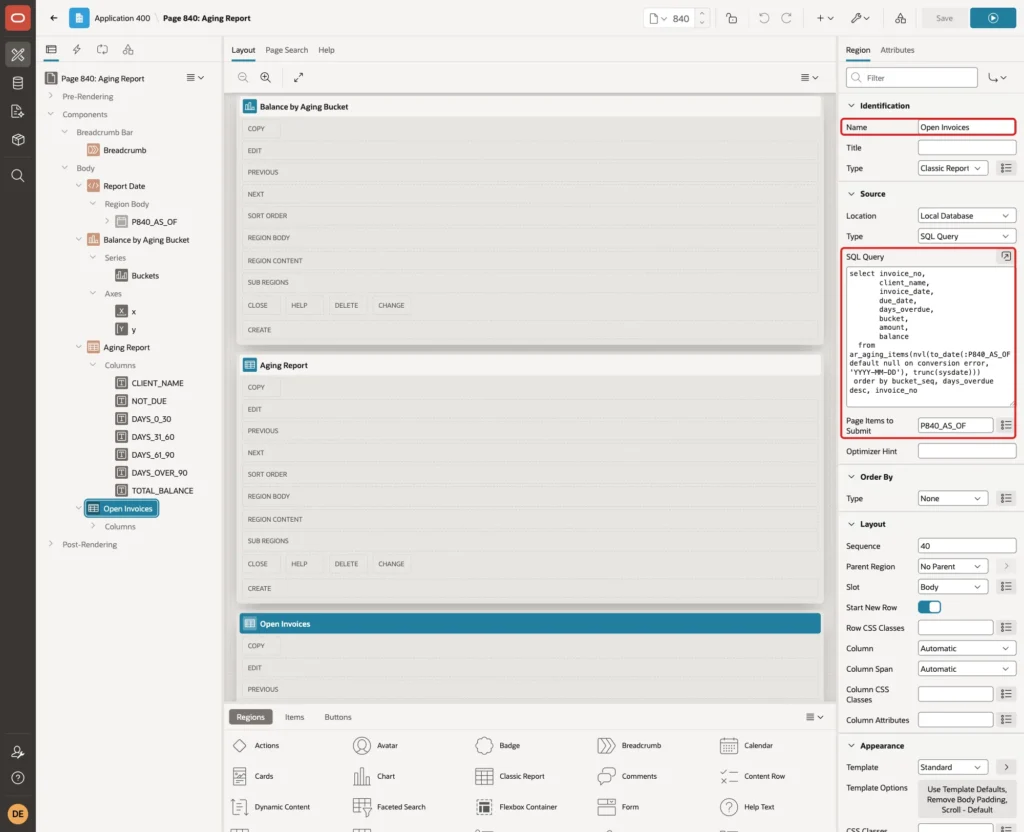

The summary shows the amounts, but users also want to see which invoices are behind them. Right-click Body, choose Create Region and set Name to Open Invoices, Type to Classic Report and Sequence to 40. Set Source > Type to SQL Query with this query and Page Items to Submit to P840_AS_OF:
Example:
select invoice_no,
client_name,
invoice_date,
due_date,
days_overdue,
bucket,
amount,
balance
from ar_aging_items(nvl(to_date(:P840_AS_OF default null on conversion error, 'YYYY-MM-DD'), trunc(sysdate)))
order by bucket_seq, days_overdue desc, invoice_no
Set HTML DOM ID to open-invoices and When No Data Found to No open invoices on this date. In the columns, set Format Mask YYYY-MM-DD for INVOICE_DATE and DUE_DATE, FM999G999G990D00 for AMOUNT and BALANCE, and turn off Sortable for all columns, as in the summary report.
Step 8: Refresh the Page When the Date Changes
Right-click P840_AS_OF and choose Create Dynamic Action. Set Name to As Of Date Changed and keep Event Change, Selection Type Item(s) and Item(s) P840_AS_OF.
Under Client-side Condition, set Type to JavaScript expression and JavaScript Expression to:
Example:
apex.item( "P840_AS_OF" ).getValidity().valid
Why the condition? The first version of the page had no condition. Typing abc into the date field refreshed the regions, and the server used today because of the NVL fallback. The page showed today's numbers while the field said abc, which is misleading.
The date picker already knows when its value is not a date. getValidity().valid is false for abc, for 2026-13-45, for 2026-02-30 and for an empty field, so the True actions run only for real dates.

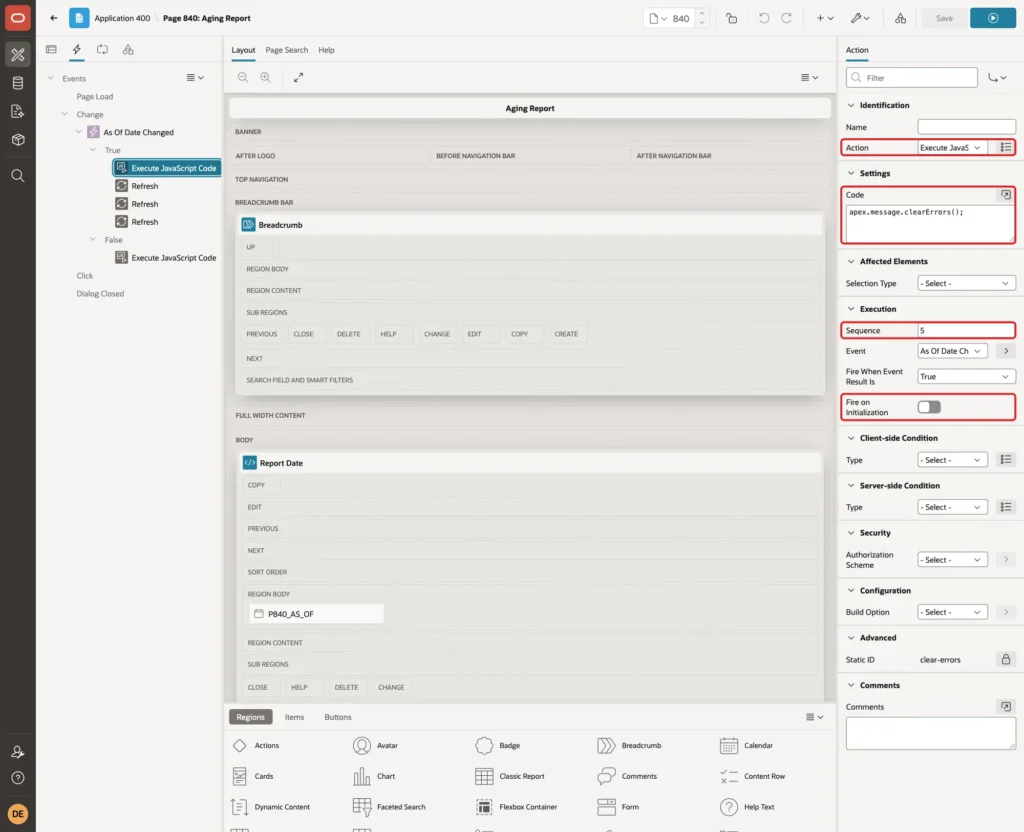

Select the True action and set Action to Execute JavaScript Code with this code. It removes an error message from an earlier invalid date. Turn off Fire on Initialization:
Example:
apex.message.clearErrors();

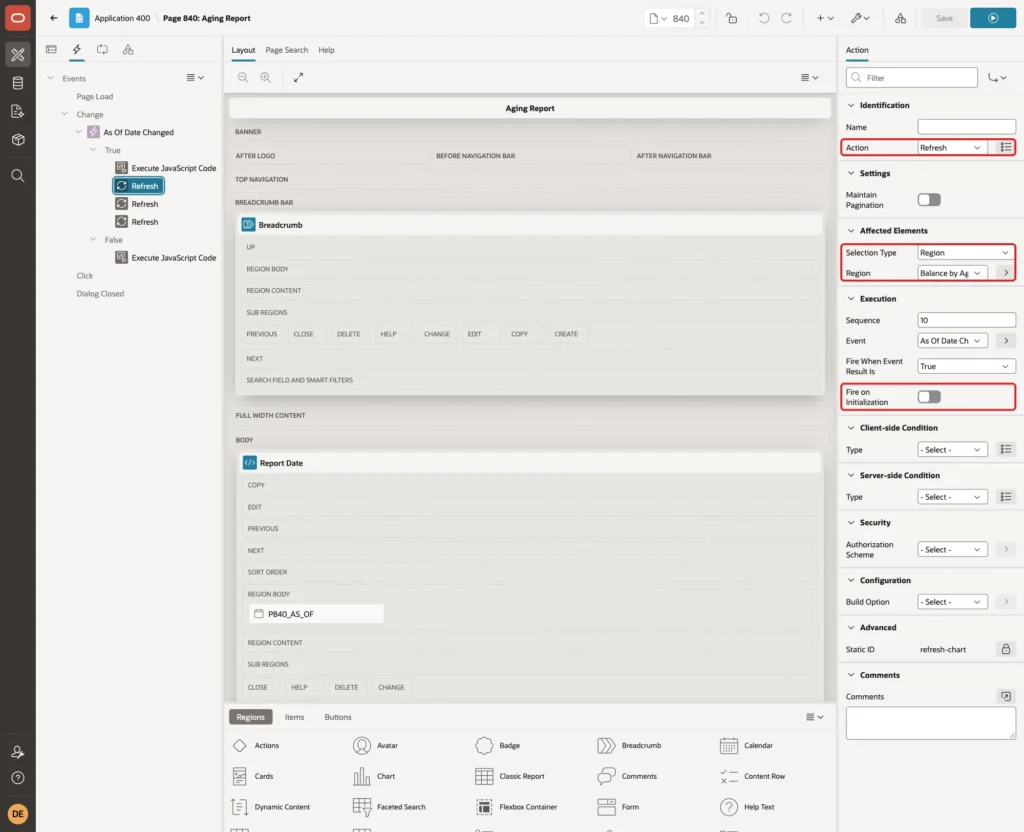

Right-click True and choose Create Action three times. Set each to Action Refresh, Selection Type Region, with the regions Balance by Aging Bucket, Aging Report and Open Invoices. Turn off Fire on Initialization for all three, because the regions already load with the page:

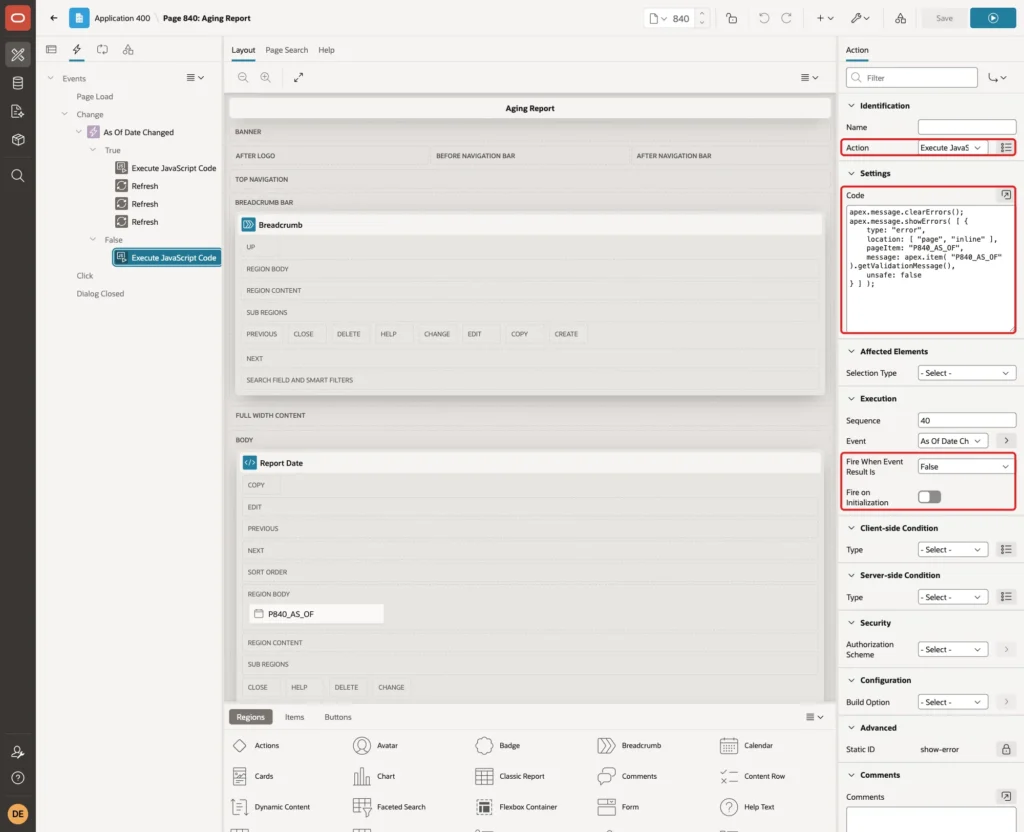

Right-click False, choose Create Action and set Action to Execute JavaScript Code with this code. Keep Fire When Event Result Is False and turn off Fire on Initialization:
Example:
apex.message.clearErrors();
apex.message.showErrors( [ {
type: "error",
location: [ "page", "inline" ],
pageItem: "P840_AS_OF",
message: apex.item( "P840_AS_OF" ).getValidationMessage(),
unsafe: false
} ] );

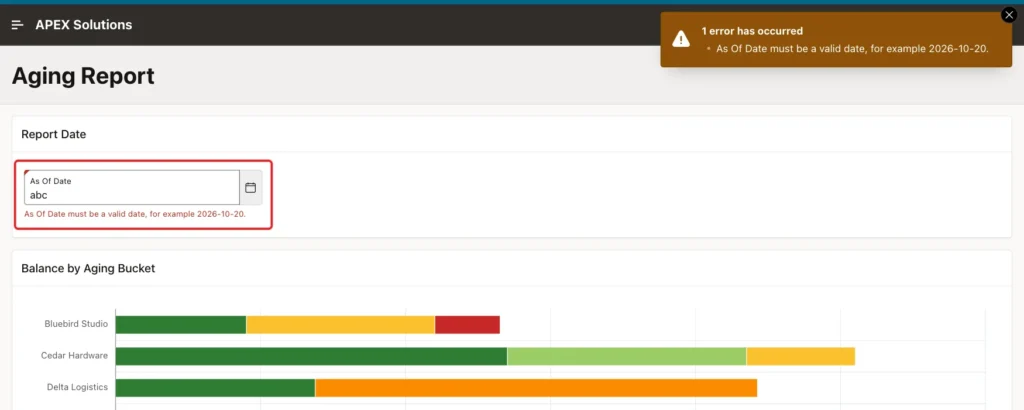

getValidationMessage returns the message of the date picker, for example "As Of Date must be a valid date". The regions keep the numbers of the last valid date. Save the page.
Step 9: Test the Aging Report

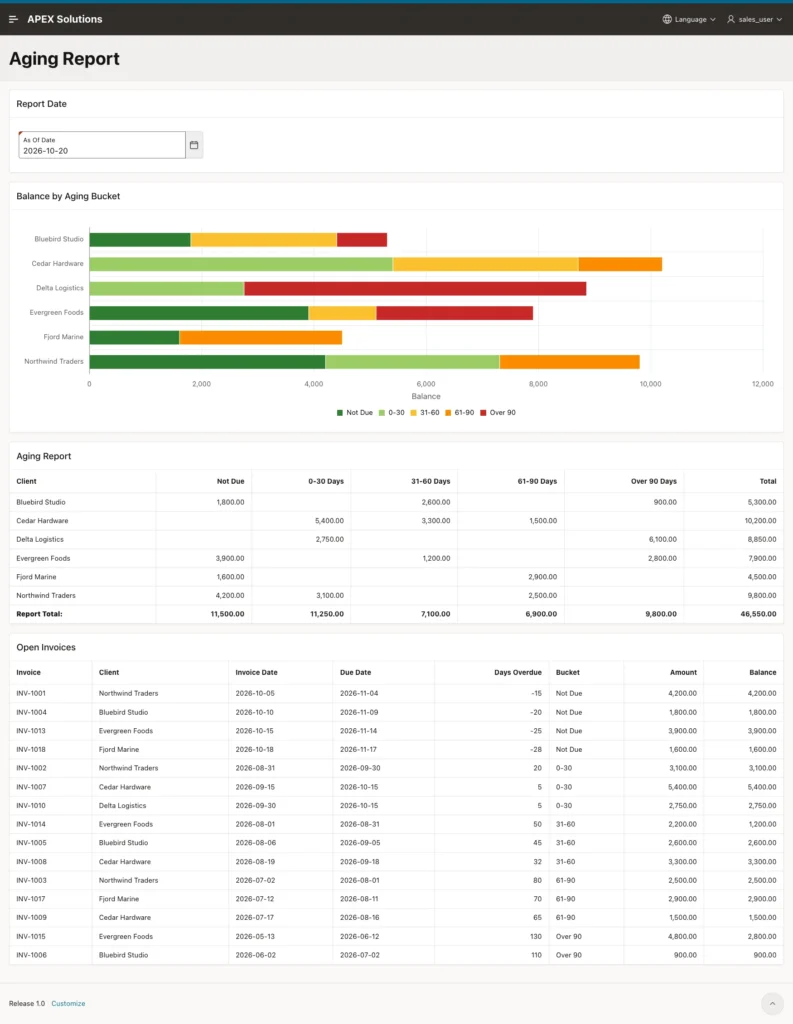

Sign in as a normal user and open Aging Report from the navigation menu. The page opens with today's date:
The Report Total row shows 11,500.00, 11,250.00, 7,100.00, 6,900.00 and 9,800.00, exactly the bucket totals from Step 2, and a grand total of 46,550.00. The Open Invoices list has the same 16 invoices, and every bar segment in the chart matches a cell of the summary.

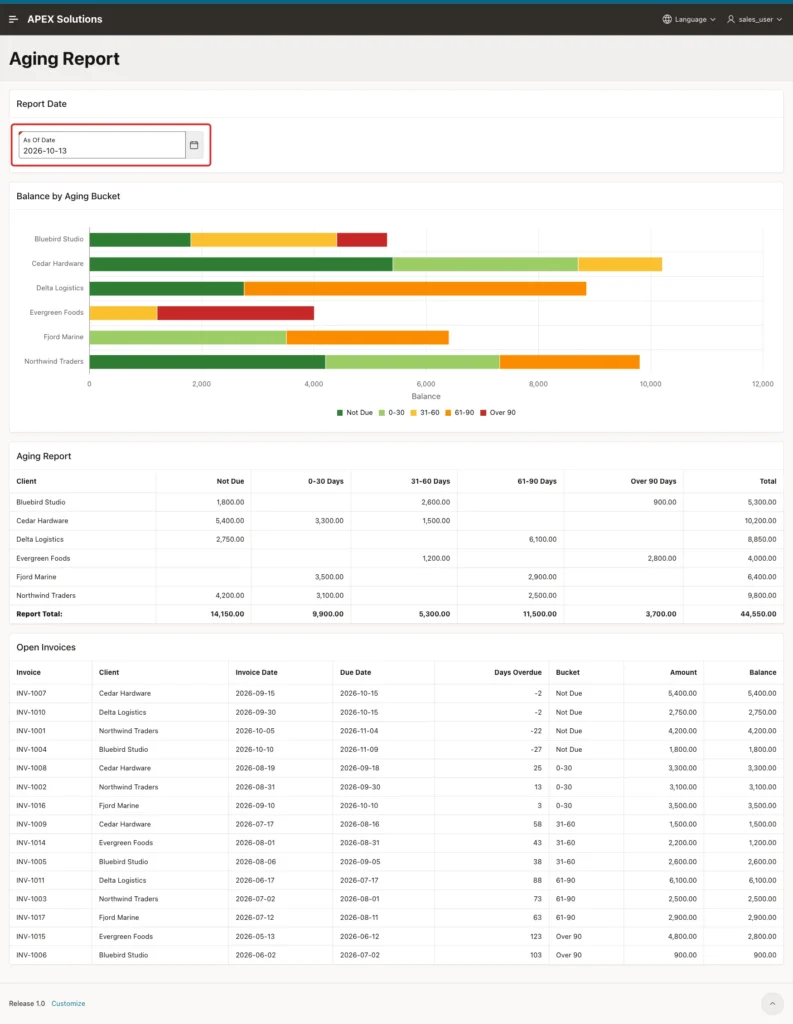

Now change the As Of Date to the date seven days earlier (2026-10-13 in this test). All three regions refresh without reloading the page:
The totals are now 14,150.00, 9,900.00, 5,300.00, 11,500.00 and 3,700.00. Check them in SQL and list every invoice that has a different bucket or balance between the two dates:
Example:
set pages 100 lines 200 feedback on
select bucket, count(*) as invoices, sum(balance) as balance
from ar_aging_items(trunc(sysdate) - 7)
group by bucket, bucket_seq
order by bucket_seq;
select coalesce(t.invoice_no, w.invoice_no) as invoice_no,
w.bucket as week_ago_bucket,
w.balance as week_ago_balance,
t.bucket as today_bucket,
t.balance as today_balance
from ar_aging_items(trunc(sysdate)) t
full join ar_aging_items(trunc(sysdate) - 7) w on w.invoice_id = t.invoice_id
where decode(t.bucket, w.bucket, 0, 1) = 1
or decode(t.balance, w.balance, 0, 1) = 1
order by 1;Output:
BUCKET INVOICES BALANCE __________ ___________ __________ Not Due 4 14150 0-30 3 9900 31-60 3 5300 61-90 3 11500 Over 90 2 3700 5 rows selected. INVOICE_NO WEEK_AGO_BUCKET WEEK_AGO_BALANCE TODAY_BUCKET TODAY_BALANCE _____________ __________________ ___________________ _______________ ________________ INV-1007 Not Due 5400 0-30 5400 INV-1008 0-30 3300 31-60 3300 INV-1009 31-60 1500 61-90 1500 INV-1010 Not Due 2750 0-30 2750 INV-1011 61-90 6100 Over 90 6100 INV-1013 Not Due 3900 INV-1016 0-30 3500 INV-1018 Not Due 1600 8 rows selected.
The bucket totals match the page. The second query shows why they moved:
- INV-1007 and INV-1010 were not due a week ago and are now in 0-30.
- INV-1008, INV-1009 and INV-1011 each moved one bucket up as they got older.
- INV-1016 was still open a week ago. Its payment came three days ago, so it is gone today.
- INV-1013 and INV-1018 did not exist a week ago.
This works because the balance is calculated from payment dates. A stored balance column holds only today's value, so INV-1016 would be missing from the week-ago view.
Next, a negative test. Type abc into the As Of Date field and leave it:
The error appears in the notification and below the field, and the regions keep the numbers of 2026-10-13. Setting 2026-13-45 from the browser console with apex.item("P840_AS_OF").setValue gave the same error. Entering a valid date again removed the error and refreshed the regions.
Last, the server side. In the browser console, the value abc was set without a change event and the Aging Report region was refreshed directly, which skips the dynamic action. The region showed today's totals, 46,550.00, and no ORA- error. DEFAULT NULL ON CONVERSION ERROR and NVL caught the forged value.
Things to Know
- Keep the bucket rules in one place, like the SQL macro of this guide. A report and a chart with their own CASE expressions drift apart sooner or later.
- Age by days past due, as here, or by days since the invoice date. Change the macro, not the pages, if your rules differ.
- Calculate the open balance from dated payments if you need past as-of dates. A stored balance column only works for today.
- Compute Sum gives the total row without SQL. Turn it on only for number columns.
- A chart series with a Series Name column creates one series per value. In this test, the series followed the order of the query rows, so sort the query by the bucket number.
- trunc(sysdate) uses the clock of the database server. Here the server ran on UTC, so the page defaulted to 2026-10-20 while it was already 21 October in India. Use a date in the user's time zone if that matters.
- For large tables, index the due date and filter early. The macro reads all open invoices for every refresh of the three regions.
Related Guides
Conclusion
Aging buckets in Oracle APEX need one SQL macro with the bucket rules, a Classic Report with Compute Sum for the totals, a stacked bar chart with a Series Name column and an As Of Date item that refreshes all regions.
In this example, the totals on the page matched SQL for today and for a week earlier, invoices moved between buckets as expected, and invalid dates showed an error instead of wrong numbers. The same steps work for any table with a due date and an open amount.
See my articles more often when you search Google.
