Oracle Apex: Set Number Format and Allow Numbers Only Using autoNumeric.min.js

In this Oracle Apex tutorial, I will show you how to set number format and allow numbers only using autoNumeric.min.js (AutoNumeric JavaScript Library) for numeric type fields. To use the autoNumeric library in your application, first, you need to download and then upload it to the Oracle Apex application. To do this, follow the below steps:

Download the autoNumeric.min.js

You can download the autoNumeric library from GitHub or directly get the autoNumeric.min.js file using the following URL autoNumeric.min.js (this link will open the JavaScript file in the browser window, copy the contents of the window and save it to a file as autoNumeric.min.js).

Upload autoNumeric.min.js to Oracle Apex

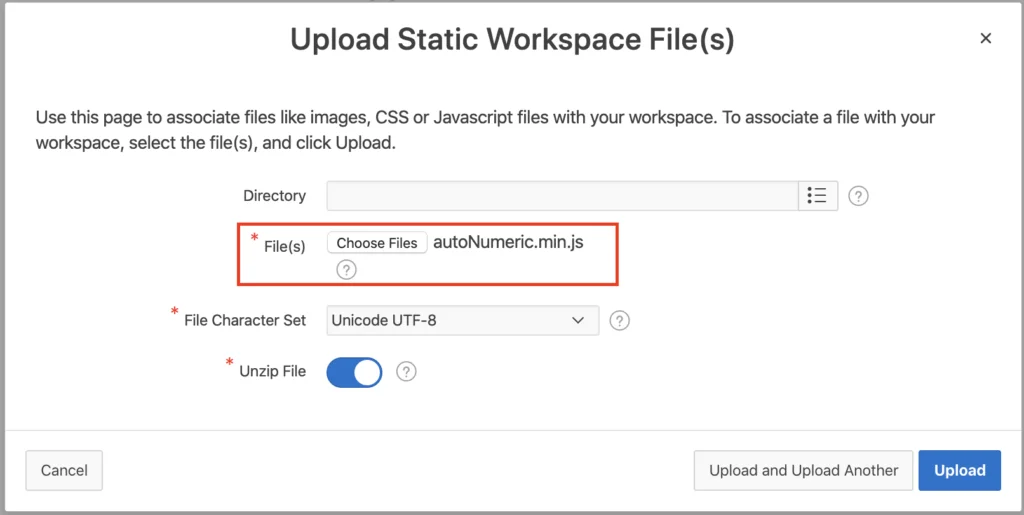

To upload the autoNumeric.min.js file in Oracle Apex, click on the Shared Components > Static Workspace Files then click the Upload File button. The following window will appear as shown in the below image:

Oracle Apex - Upload workspace static files.

Click on the Choose File button to select the file autoNumeric.min.js and click on the Upload button.

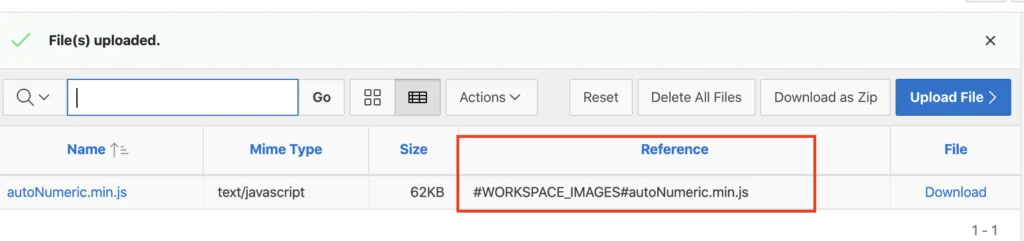

After uploading the file copy the reference path (#WORKSPACE_IMAGES#autoNumeric.min.js) as shown in the below image:

Oracle Apex - Workspace static file path.

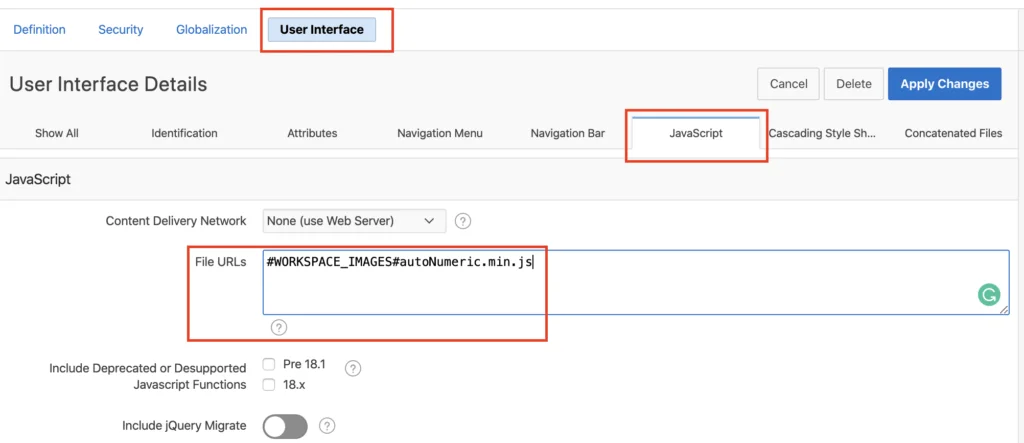

Now you need to add this JavaScript file path to your application so that you can use the library. To do this, click on the Shared Components > User Interface > Desktop > JavaScript, then paste the copied path in the File URLs field as shown in the below image:

Oracle Apex - JavaScript file urls.

Then click on the Apply Changes button to save the changes.

Use autoNumeric JavaScript Library in Your Application

You have downloaded, uploaded and added the autoNumeric JavaScript library to your application. Now you can use its functions to format numbers and allow only numbers for numeric fields in Oracle Apex. To do this, follow these steps:

Format Numbers and Allow Only Numbers in Numeric Fields in Oracle Apex

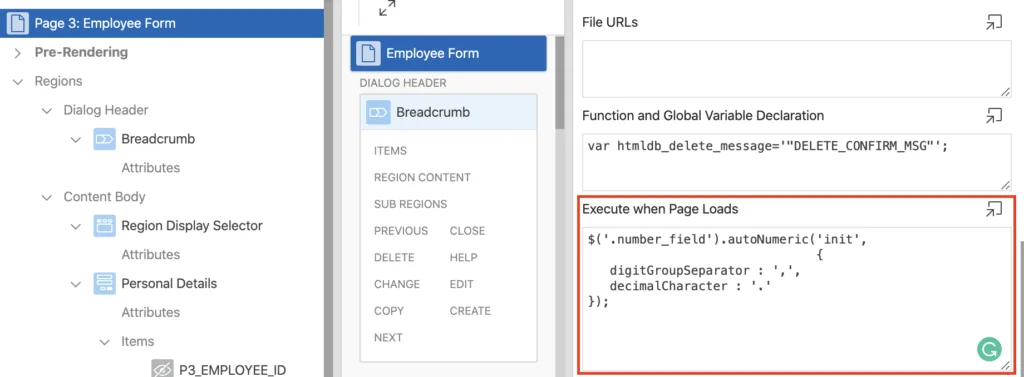

Open your page in Oracle Apex and then add the following code in Execute When Page Loads section as shown below and also in the image:

$('.number_field').autoNumeric('init',
                               {
   digitGroupSeparator : ',',
   decimalCharacter : '.'
});

Oracle Apex - JavaScript code to execute on page load.

Notice in the above code, that the class .number_field is used, because it is the default class for Numeric Fields in Oracle Apex. Also, it will set a thousand operators as comma ',' and the decimal character as dot '.'. This format will apply to all numeric fields on this page and will only allow numbers to enter.

Now the second step is to apply the format mask to the numeric field, to do this, click on the field in your page and then in the Appearance section set the format mask as shown in the below image:

Oracle Apex - format mask property.

Save the changes and run the page to test.

Apply Number Format and Allow Numbers only to Specific Fields

You can also specify the format and the allow only number rule to specific fields on the page in Oracle Apex, to do this, specify the name of the item instead of the class name in the JavaScript code for autoNumeric, as shown in the below example:

$('#P3_SALARY').autoNumeric('init',
                               {
   decimalCharacter : '.',
   digitGroupSeparator : ',',
   currencySymbol : '$',
});

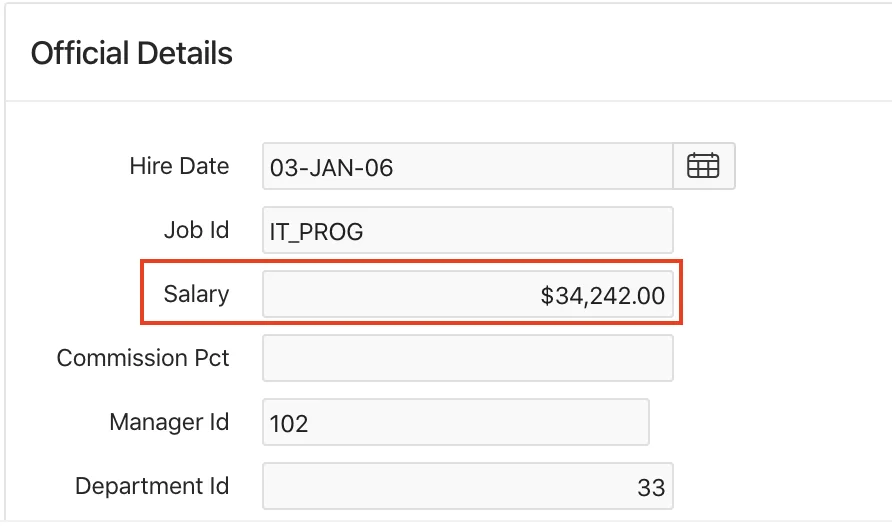

The above code will be applied to the field P3_SALARY only. And note, as we are using the currency symbol also in the above code, so the field's format mask must be changed to support the currency symbol.

Oracle Apex - Number format example.

Apply Number Format and Allow Numbers to all Numeric Fields in All Pages

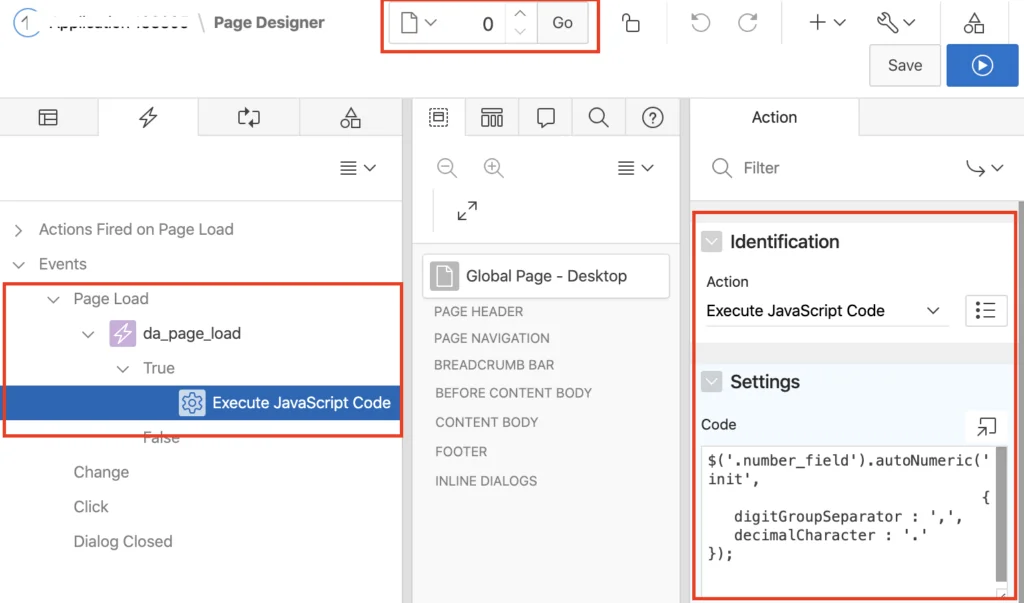

To apply the same number format and allow numbers only rule to all numeric fields in all the pages in your application, create a dynamic action on page load in your application's Global Page (Page 0), as shown in the below example:

$('.number_field').autoNumeric('init',
                               {
   digitGroupSeparator : ',',
   decimalCharacter : '.'
});

Oracle Apex - On page load dynamic action.

Also, make sure to specify the format mask for every field in all the pages of your application.
